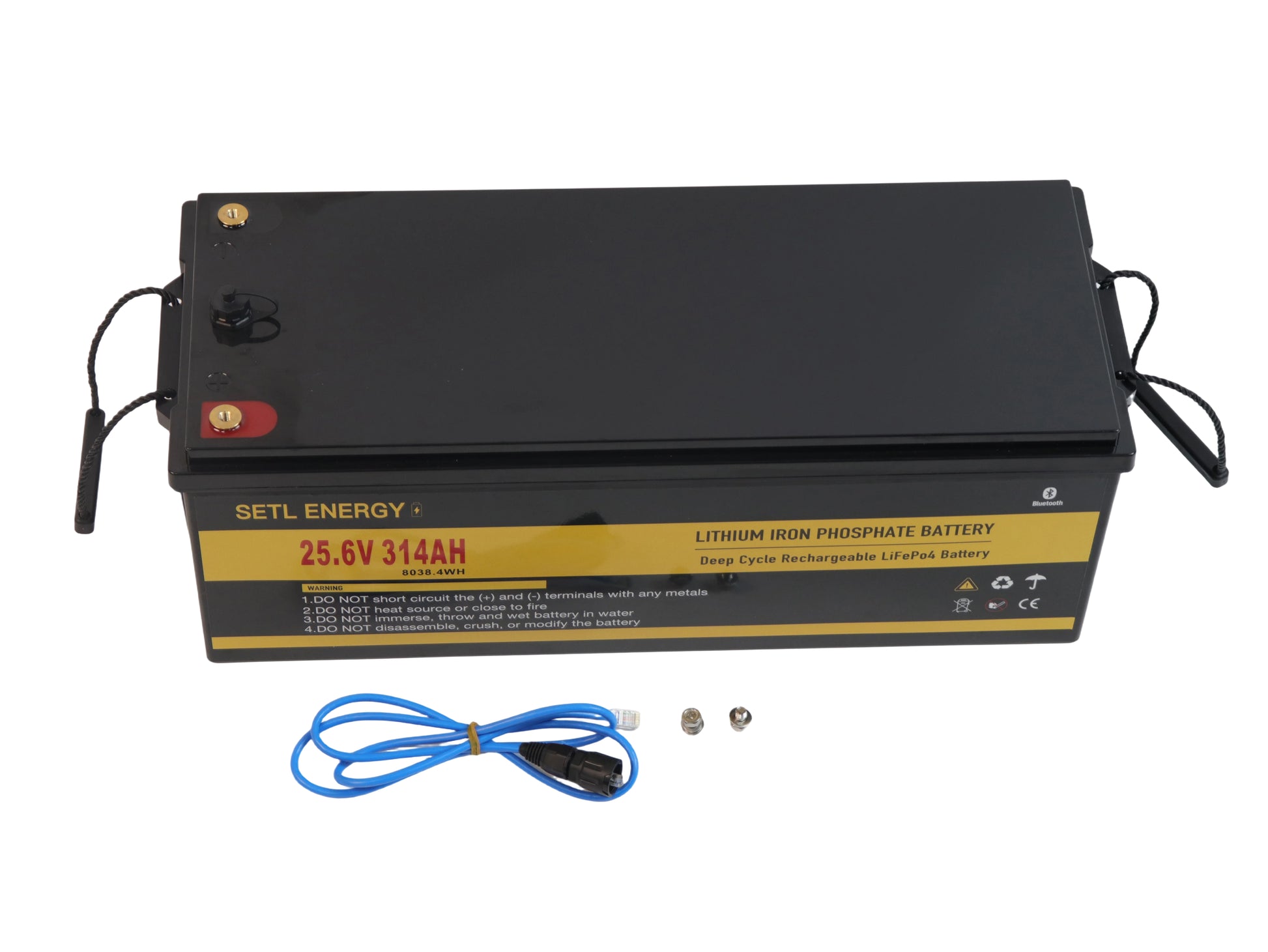

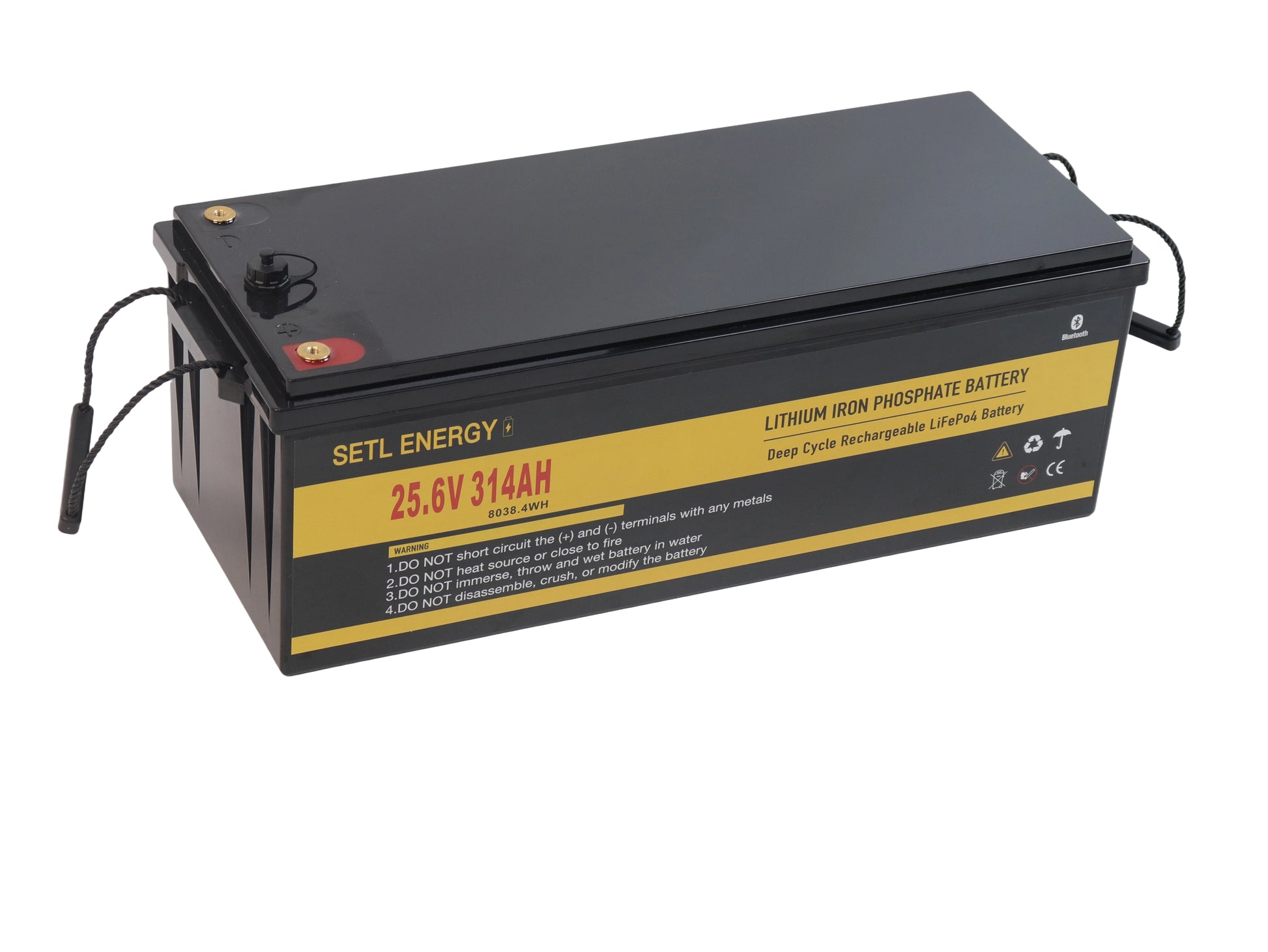

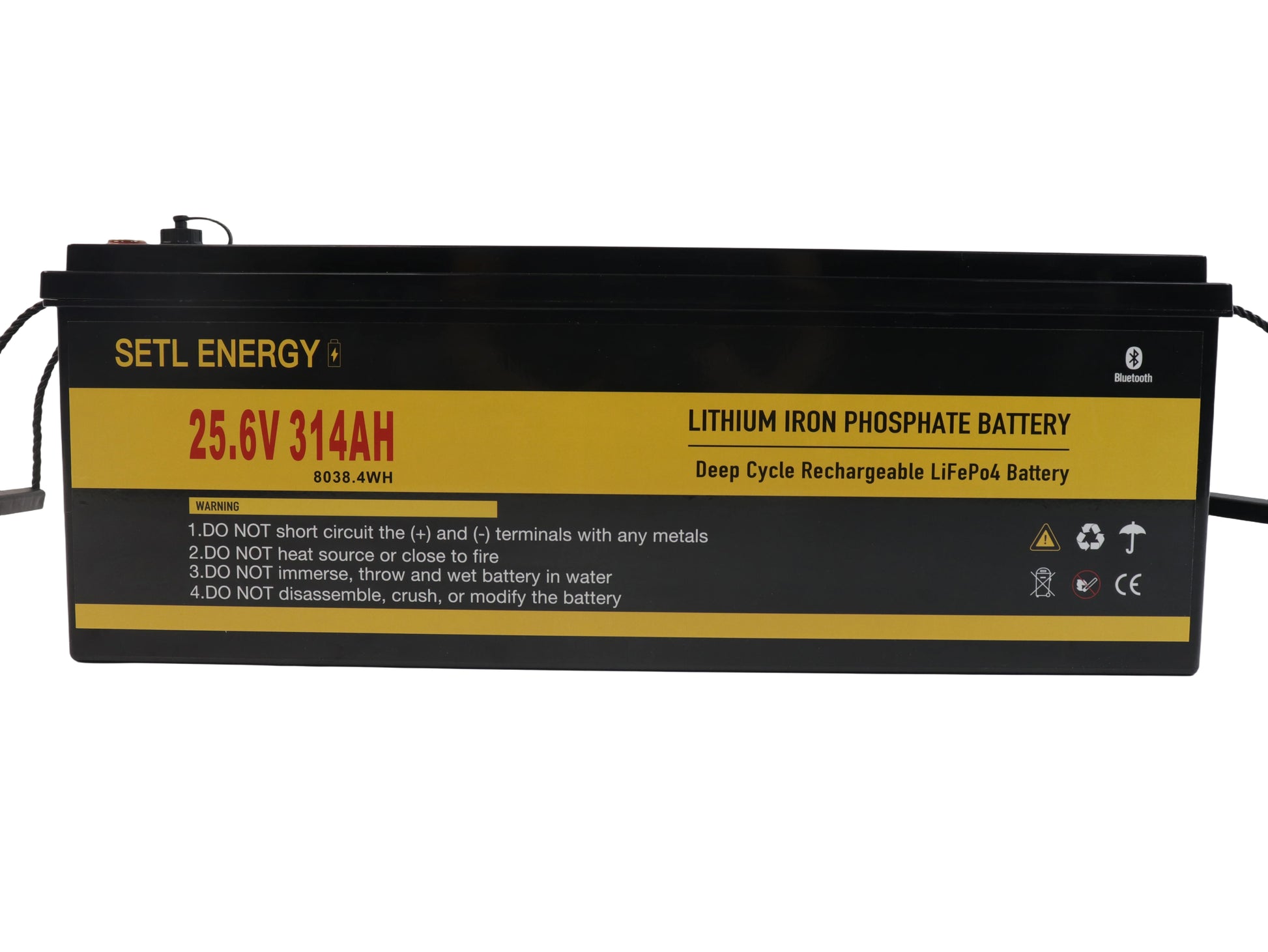

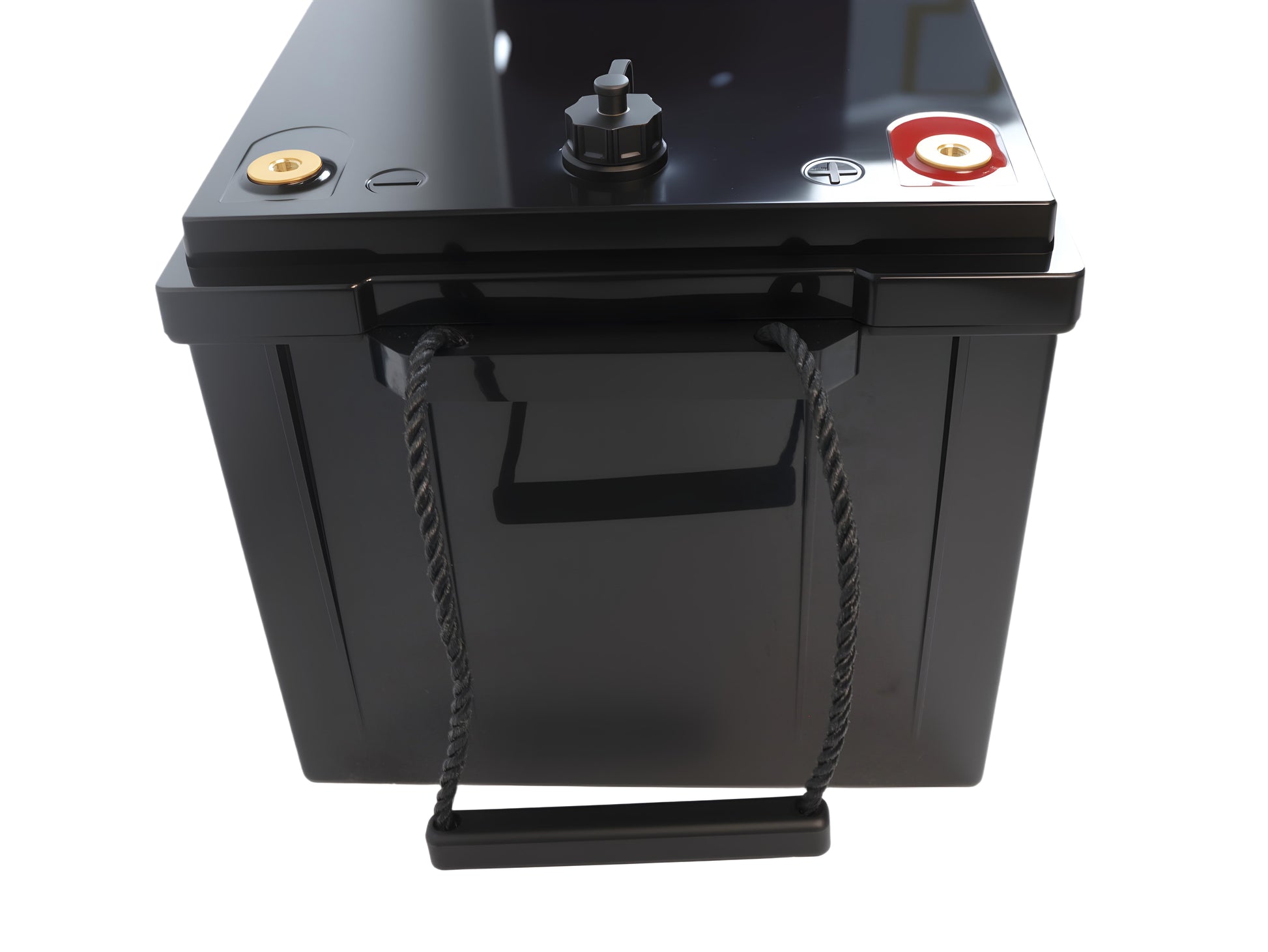

24V314Ah LiFeP Battery - IP67 Waterproof Smart Battery with CAN Communication

The SETL ENERGY 24 V 314 Ah LiFePO₄ Battery is a premium-grade energy storage solution built for marine, RV, and off-grid solar systems that demand maximum reliability, communication, and safety.
Powered by HTHIUM 3.2 V 314 Ah Grade A LiFePO₄ cells and managed by intelligent SMART BMS , this 8.04 kWh module offers exceptional longevity, advanced data communication, and full environmental protection with an IP67-rated ABS enclosure.

Key Features

- CAN communication port enables integration with NMEA 2000 marine systems(Need 500k-to-250kbps conversion) or 24 V solar inverters, supporting real-time SOC and voltage data exchange.

- IP67 waterproof ABS enclosure — completely sealed against dust and water immersion (up to 1 m for 30 minutes).

- Active 2 A cell balancing for optimal voltage consistency and extended cell life.

- Comprehensive protection from over-voltage, under-voltage, over-current, short-circuit, and temperature conditions.

- Real-time monitoring via Bluetooth, RS485, or RS232 using BMS App.

- Plug-and-play compatibility with major inverter brands including DEYE, Victron, Growatt, GoodWe, and SMA.

- Lightweight, corrosion-resistant ABS housing with internal anti-vibration structure for mobile or marine environments.

Specifications

- Nominal Voltage: 25.6 V

- Capacity: 314 Ah

- Energy: 8.04 kWh

- Cell Type: HTHIUM 3.2 V 314 Ah LiFePO₄ (Grade A)

- Configuration: 8 S (3.2 V × 8)

- BMS Model: Smart Active BMS

- Balancing Current: 2A (Active)

- Communication: CAN / RS485 / RS232 / Bluetooth

- Max Continuous Discharge: 200 A (configurable)

- Cycle Life: > 8,000 cycles @ 70 % DOD (cell rated for 11,000 cycles)

- Operating Temperature: –20 °C to +60 °C

- Protection Rating: IP67 (waterproof & dustproof)

- Enclosure Material: ABS industrial-grade

- Dimension: 640mmL*245mmW*220mmH

- Weight: ≈ 46 kg

Applications

- Marine / Yacht / Electric Boat Power Systems

- RV and Camper Energy Storage

- Off-Grid Solar and Hybrid Inverter Systems

- Industrial UPS and Backup Power

- Remote Monitoring and Telecom Installations

Highlights

- 8.04 kWh usable energy

- CAN communication for NMEA 2000 and inverter integration

- IP67 waterproof ABS housing with sealed connectors

- Active 2 A cell balancing and smart monitoring

- > 8,000 cycle battery life with HTHIUM Grade A cells (11,000-cycle rating @ 70 % DOD)

- High discharge capability up to 200 A

- Maintenance-free, silent, and safe operation

SETL ENERGY 24 V 314 Ah LiFePO₄ Battery — engineered for performance, built for harsh environments, and optimized for intelligent energy management across marine, RV, and solar systems.
