EVE

4 x EVE Lithium Iron Phosphate Battery (Lifepo4) 3.2v 280ah (4 cells)

4 x EVE Lithium Iron Phosphate Battery (Lifepo4) 3.2v 280ah (4 cells)

Regular price $1,015.00 NZD
Regular price $1,296.90 NZD Sale price $1,015.00 NZD
Sale Sold out
Tax included.

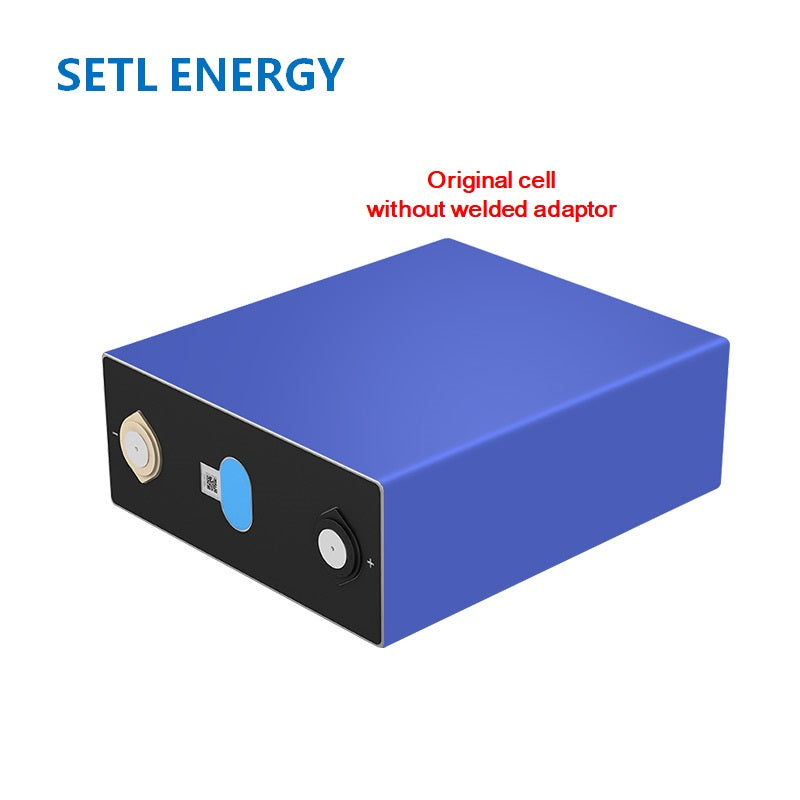

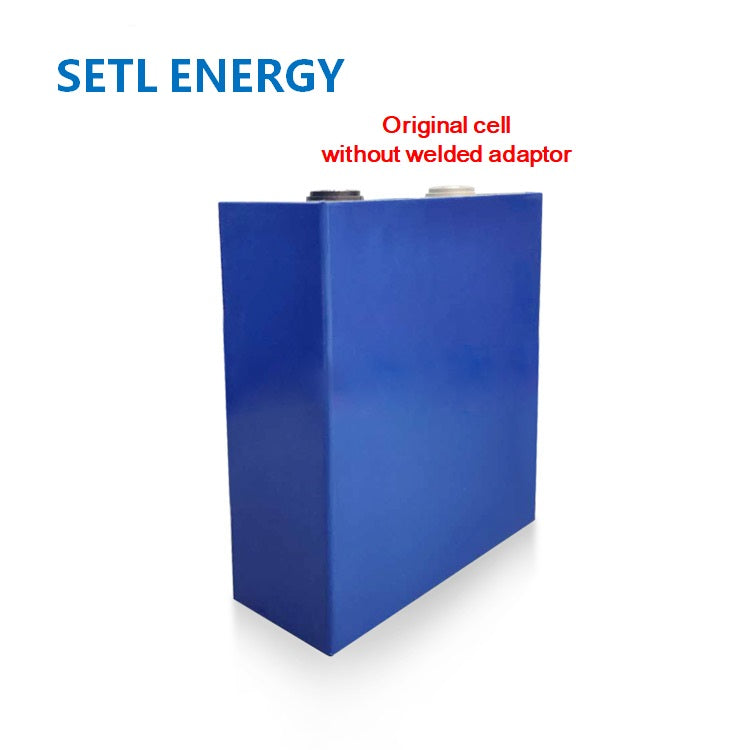

This brand new, Grade A prismatic LiFePO4 cell is perfect for building your own power storage for home solar storage, caravans, RV's, Motorhomes, Boats, Golf Carts, or other Electric Vehicle conversions.

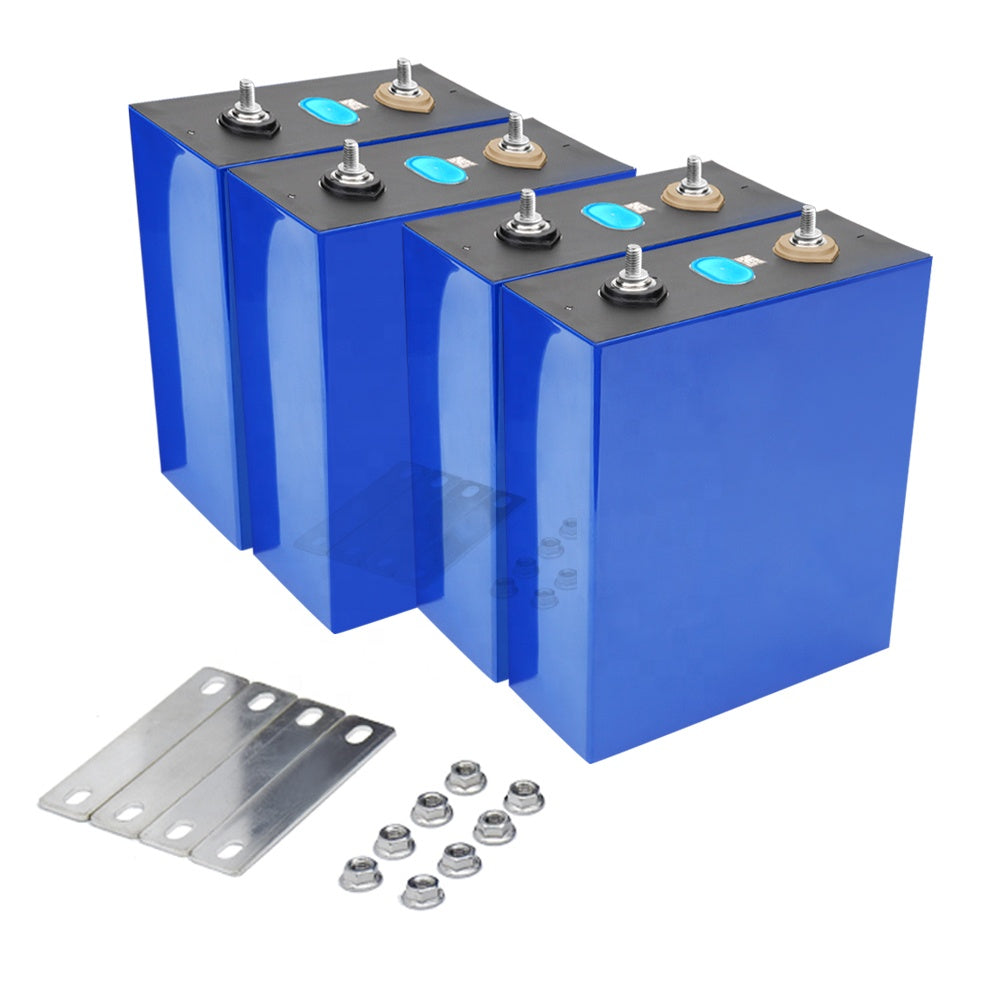

This price is for 4x cells, and each single cell includes: 1 x copper busbar and 2 x screw bolts.

3. Declaration: Unless we otherwise declared specifically, our cells are real grade A cells, series number of each cell is recorded in our database with its original chemical characters, and this is guaranteed.

Note:

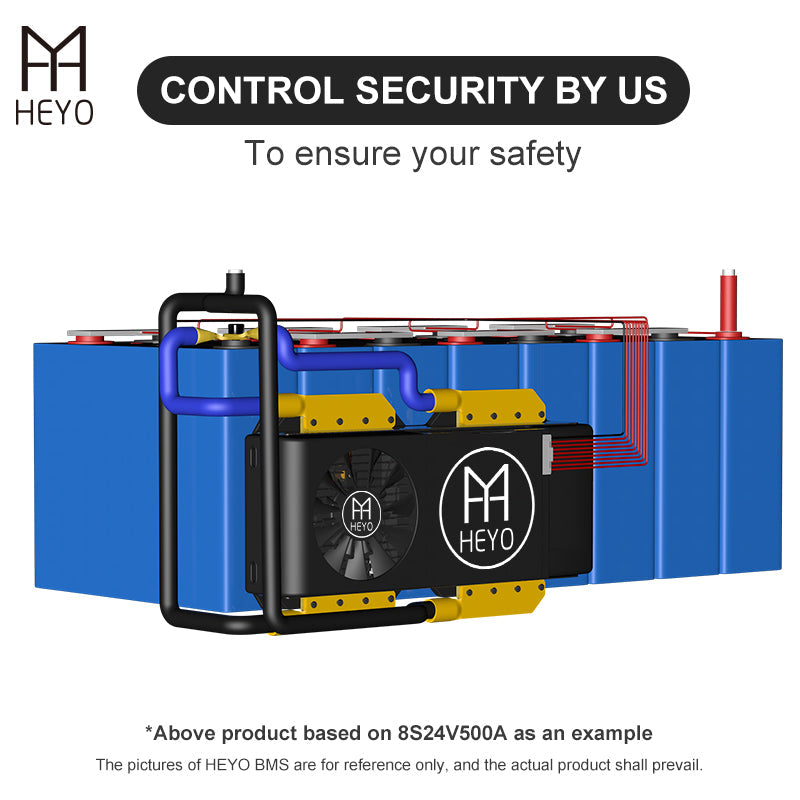

1. Please use a BMS to make a pack for safety and longevity.

2. Please wrap the cells with clamp force on both wide sides, as the cells need to work under clamp force to avoid swollen during using. (This is the right process for packing battery cells)

3. The capacity of A cell will have higher capacity than nominated and IR should between 0.15~0.17mΩ, but based on different batch, capacities are vary from batch to batch. So it is normal like one batch is around 313Ah and another batch is around 320Ah etc. And better not mix cells from different batch to make a pack for balance reason.

Warranty: 12 months
Applications BOATS, Electric Folklifts, Electric Power Systems, electric vehicles, Electric Wheelchairs, Golf Carts, Home Appliances, Solar Energy Storage Systems, SUBMARINES, Toys, Uninterruptible Power Supplies, Electric Vehicle Communications Energy storage Intelligent network
Brand Name: EVE
Model Number: LF280K
Place of Origin: Guangdong, China
Weight: 5.49±0.3kg
Type: Lithium Phosphate
Certificates IEC/CE/RoHS/UN38.3/MSDS/UL
OEM/ODM: Support customize
Operating Temperature: Discharge :-20-55 degreeC Charge: 0-55 degreeC
Payment Terms: Bank Transfer, Paypal, POLi payments, Wechat Pay, Alipay
Charging Time: Fast Charge
Name: 3rd Generation LF280K 3.2V lifepo4 battery

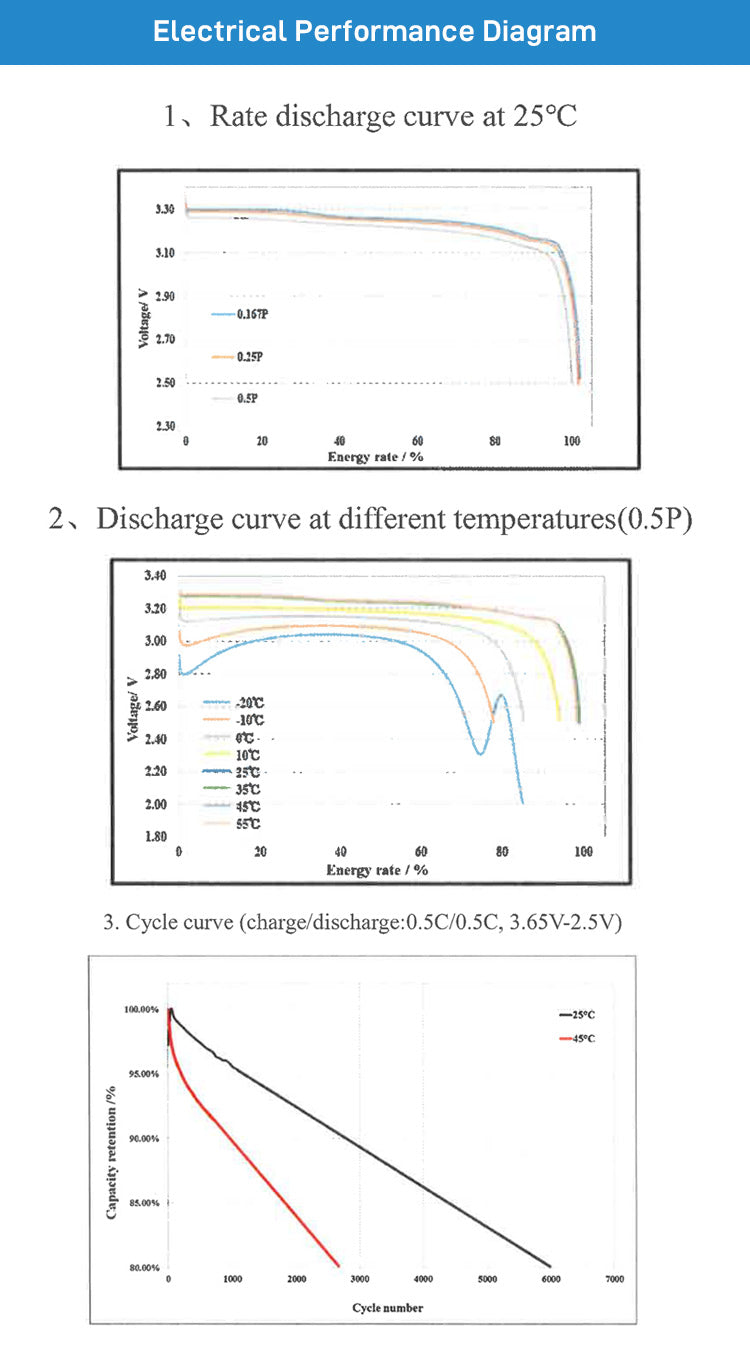

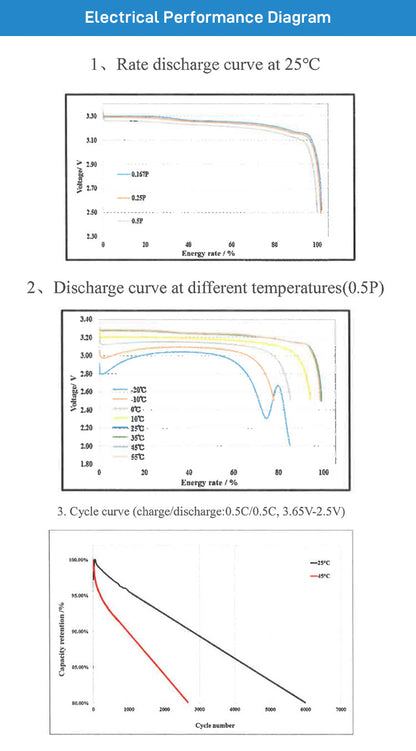

Cycle Life:

After 6000 full cycles, still have over 80% capacity available. And 8000 full cycles before 70% retension.


Typical Capacity 307Ah
Typical Voltage 3.2V
AC Impedance Resistance ≤0.25mΩ
Standard charge and discharge Charge/Discharge Current 0.5C/0.5C
Standard charge and discharge Charge/Discharge Cut-off Voltage 3.65V/2.5V
Maximum current
of charge/discharge
Constant Charge/Discharge Current 1C/1C
Pulse Charge/Discharge Ccurrent(60s) 1C/2C
Recommended SOC window 10%~90%
Charging Working Temperature 0℃~55℃
Discharging Working Temperature -20℃~55℃



 Note: Freight to be quoted by couriers and per item (NOT per order as each item (box) weight 23KG.) and pick up for free.
