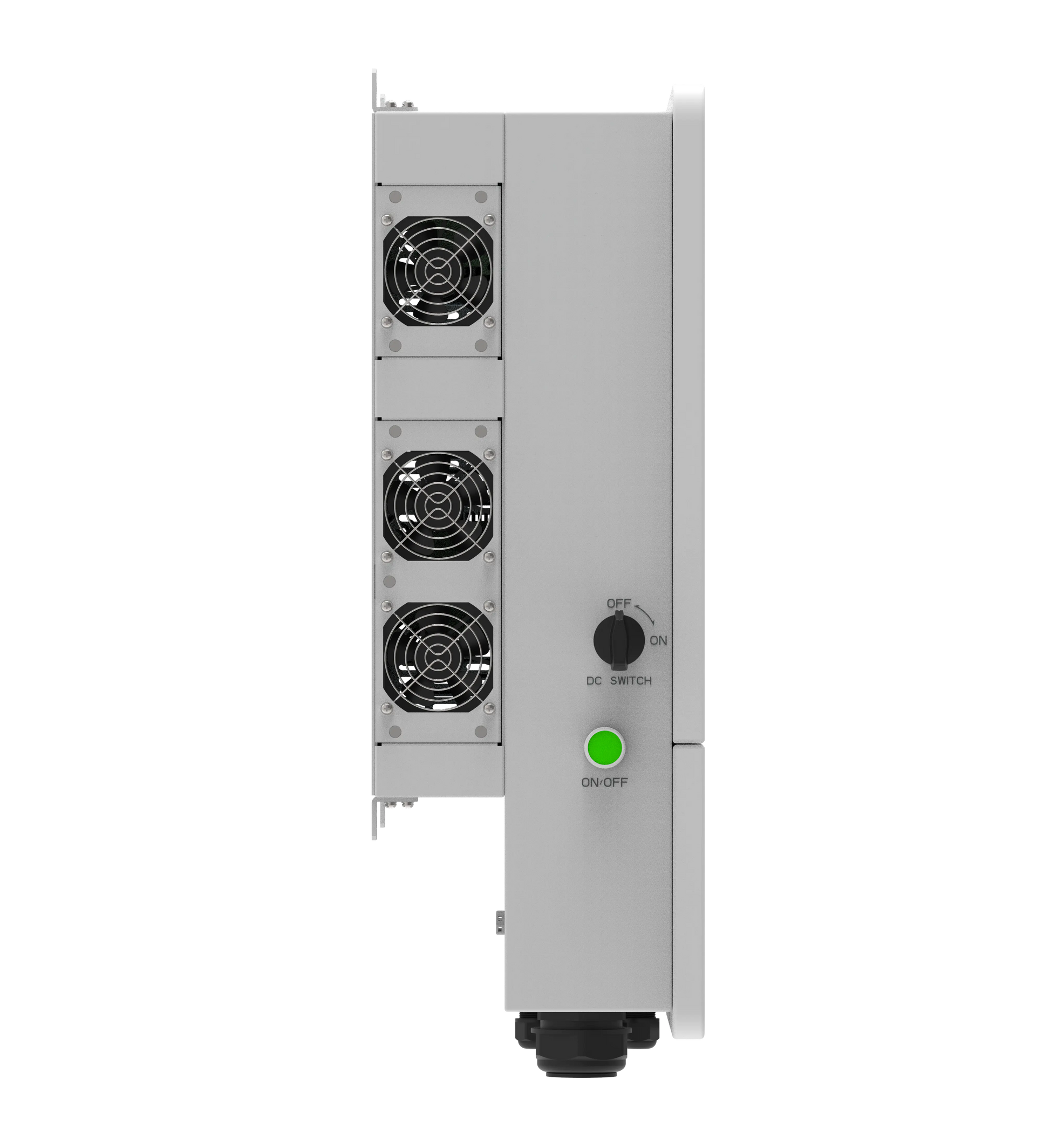

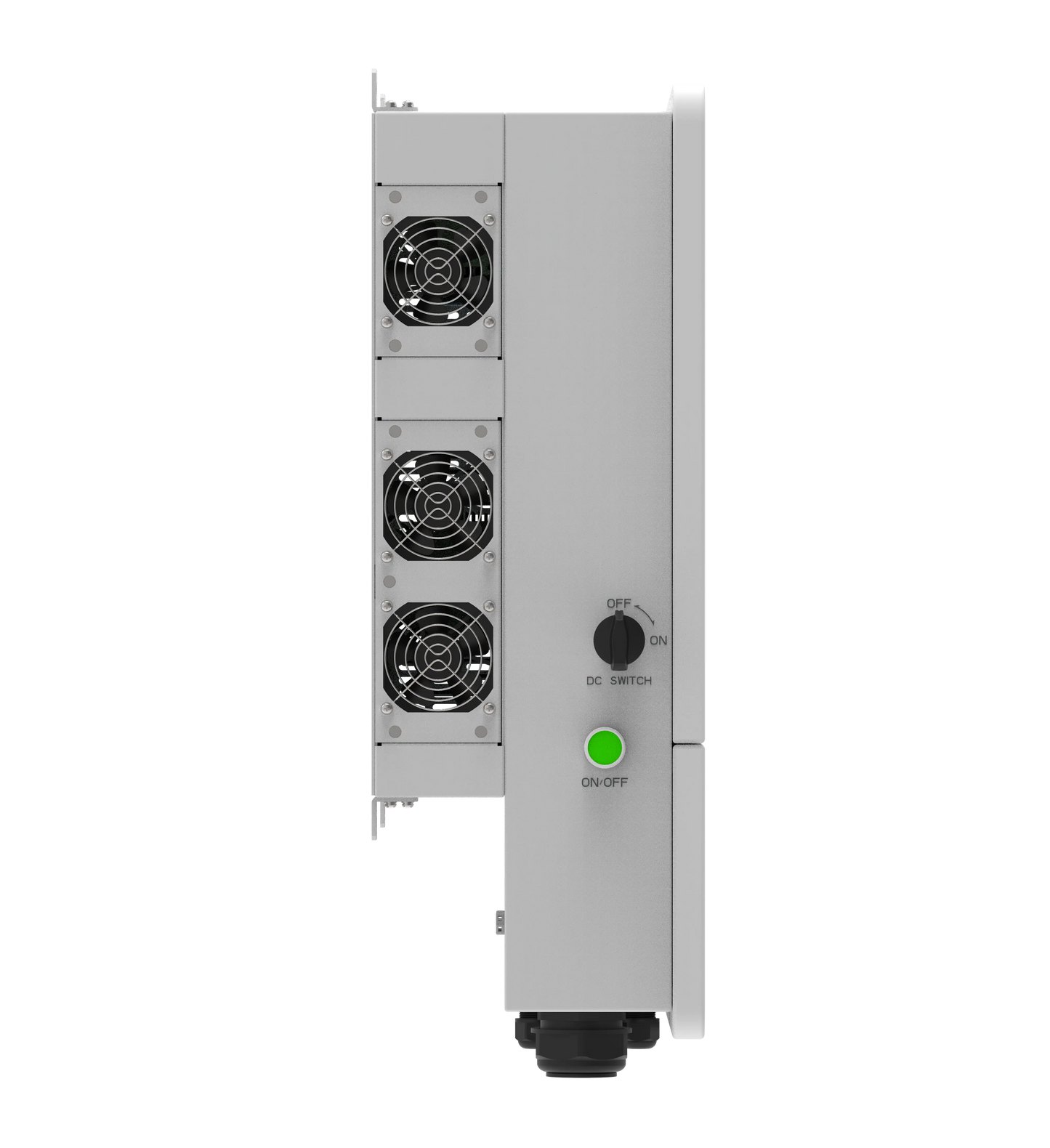

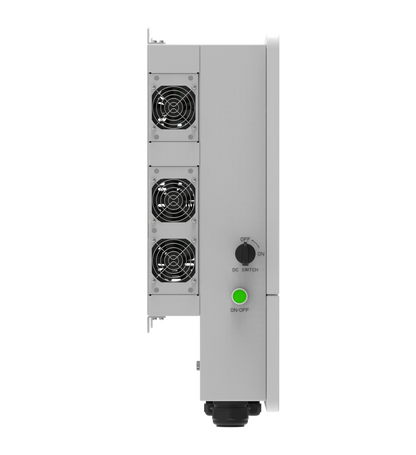

Deye 10kW Single Phase 3 MPPT Hybrid Inverter SUN-10K-SG02LP1-AU-AM3

SUN-10K-SG02LP1-AU-AM3 | 10kW | Single Phase | 3 MPPT | Hybrid Inverter | LV-Baterio Subtenita Higher yields / Safe & Reliable / Smart / User-friendly

Smart Monitoring Platform Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 250A 6 time periods for battery charging/discharging Support storing energy from diesel generator

Model: SUN-10K-SG02LP1-AU-AM3

Battery Input Data Battery Type: Lead-acid or Lithium-ion Battery Voltage Range (V): 40-60 Max. Charging Current (A): 220 Max. Discharging Current (A): 220 Charging Strategy for Li-Ion Battery: Self-adaption to BMS

PV String Input Data Max. DC Input Power (W): 15000 Rated PV Input Voltage (V): 500 Start-up Voltage (V): 125 MPPT Voltage Range (V): 150-425 Rated DC Input Voltage(V): 370 Max. Operating PV Input Current (A): 26+26+26 Max. Input Short-Circuit Current (A): 44+44+44 No. of MPP Trackers/No. of Strings MPP Tracker: 3/2+2+2

AC Output Data Rated AC Output Active Power (W): 9999 Max. AC Input/Output Apparent Power (VA): 9999 AC Output Rated Current (A): 43.5 Max. AC Output Current (A): 43.5 Max. Continuous AC Passthrough (A): 60 Peak Power (off grid): 2 time of rated power, 10 S

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 96.50% MPPT Efficiency: 99.90%

General Data Cabinet size (mm): 420W×670H×233 D(Excluding connectors and brackets) Weight (kg): 35.6 Protection Degree: IP65 Grid Regulation: AS/NZS 4777.2 Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

10 Years Warranty
