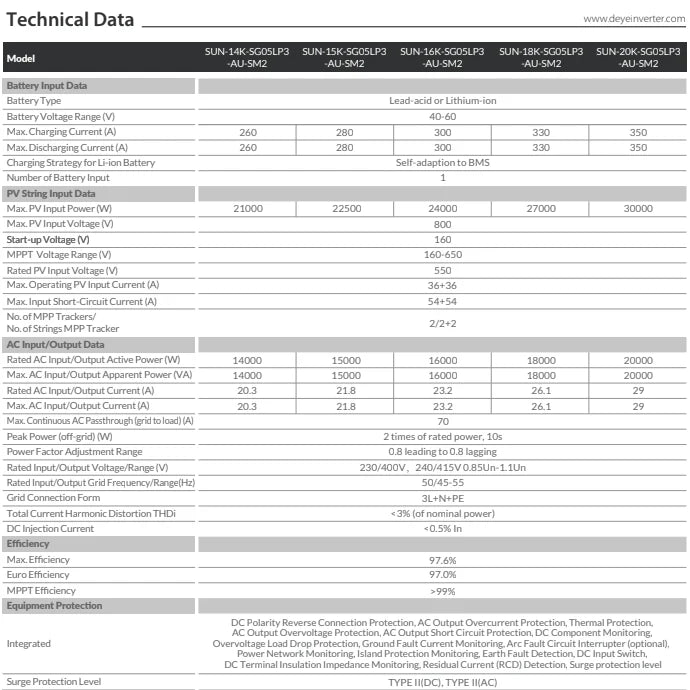

Battery Input Data Battery Type: Lead-acid or Lithium-ion Battery Voltage Range (V): 40-60 Max. Charging Current (A): 350 Max. Discharging Current (A): 350 Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1
PV String Input Data Max. PV Input Power (W): 30000 Max. PV Input Voltage (V): 800 Start-up Voltage (V): 160 MPPT Range (V): 160-650 Rated PV Input Voltage (V): 550 Max. Operating PV Input Current (A): 36+36 No.of MPP Trackers: 2 No.of Strings per MPP Tracker: 2+2
AC Output Data Rated AC Output and UPS Power (W): 20000 Rated Apparent Output Power (VA): 20000 AC Output Rated Current (A): 29 Max. AC Output Current (A): 29 Max. Continuous AC Passthrough (A): 70 Peak Power (Off Grid): 2 time of rated power, 10 S
Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: >99%
General Data Weight (kg): 50.6 Cabinet size (mm): 456W×750H×268.5D (Excluding connectors and brackets) Protection Degree: IP65
