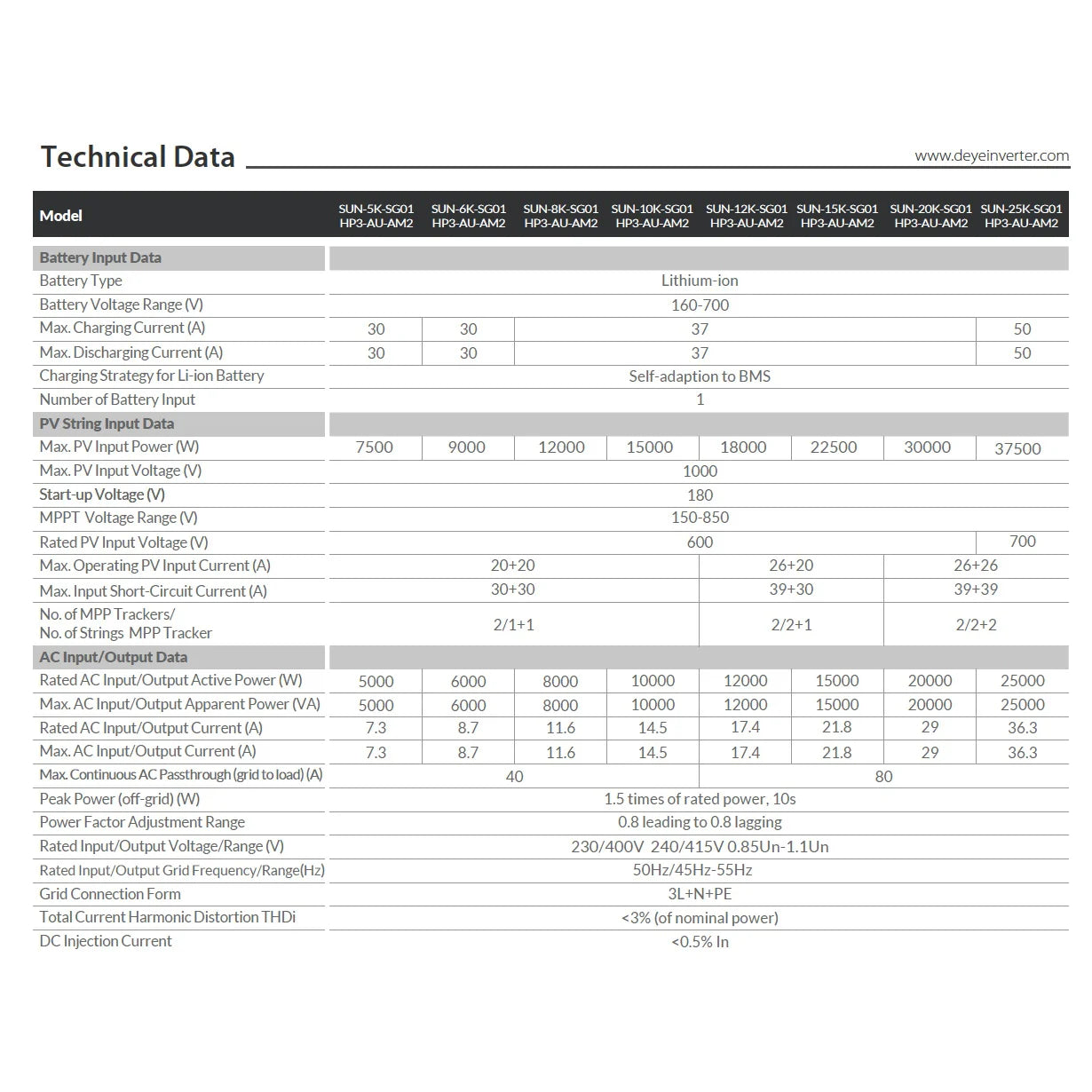

Battery Input Data Battery Type: Lithium-ion Battery Voltage Range (V): 160-700 Max. Charging Current (A): 50 Max. Discharging Current (A): 50 Charging Strategy for Li-Ion Battery: Self-adaption to BMS Number of Battery Input: 1
PV String Input Data Max. PV Access Power (W): 50000 Max. PV Input Voltage (V): 1000 Start-up Voltage (V): 180 MPPT Voltage Range (V): 150-850 Rated DC Input Voltage(V): 700 Max. Operating PV Input Current (A): 26+26 Max. Input Short-Circuit Current (A): 39+39 No. of MPP Trackers/No. of Strings MPP Tracker: 2/2+2
AC Output Data Rated AC Output Active Power (W): 25000 Max AC Output Active Power (W): 27500 AC Output Rated Current (A): 37.9/36.3 Max. AC Output Current (A): 41.7/39.9 Max. Continuous AC Passthrough (grid to load) (A): 80 Peak Power (off grid): 1.5 times of rated power, 10s

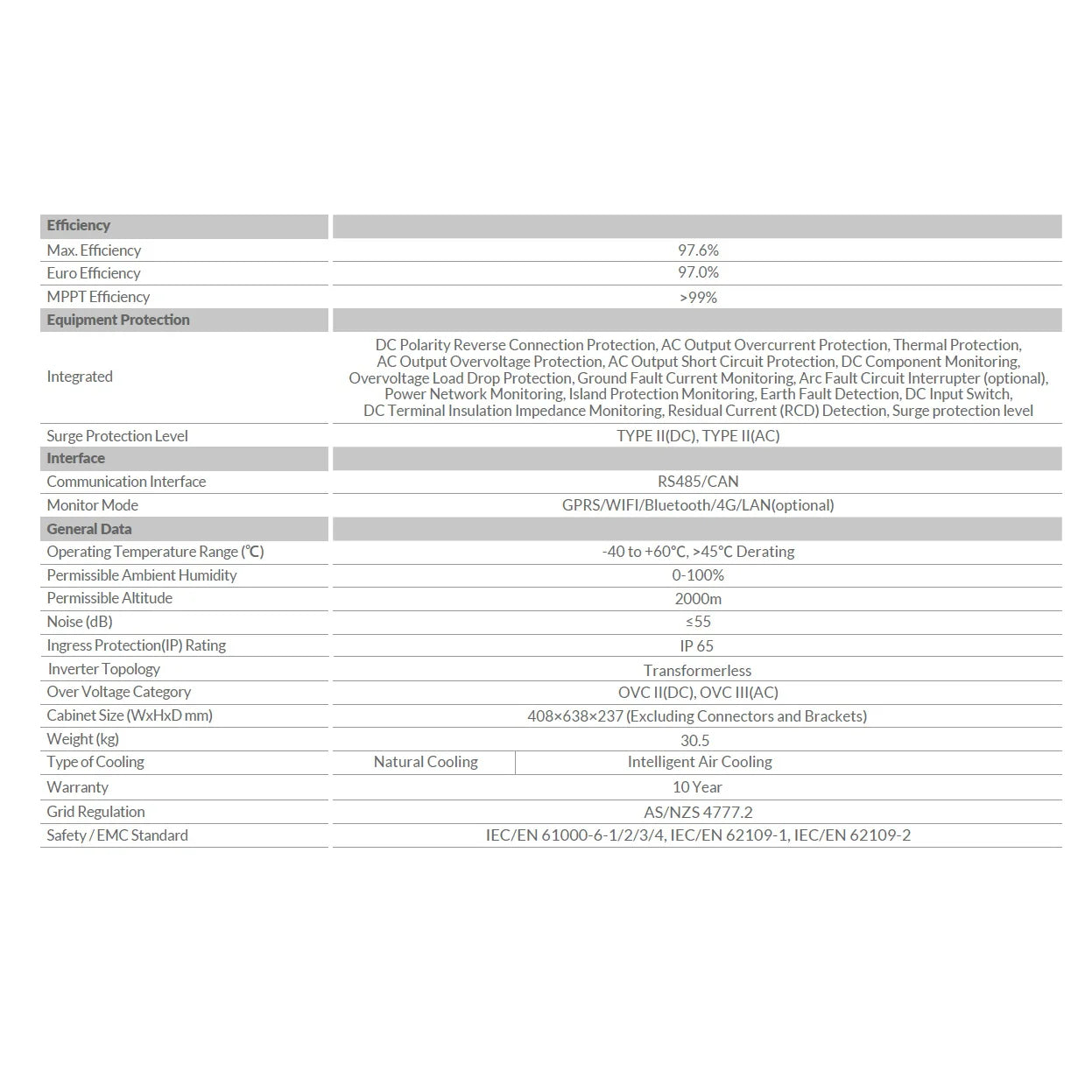

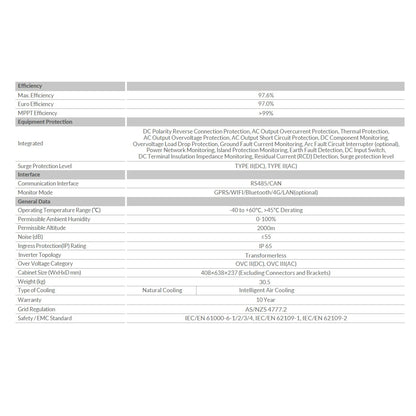

Efficiency Max. Efficiency: 97.60% Euro Efficiency: 97.0% MPPT Efficiency: >99%
General Data Weight (kg): 30.5 Cabinet size (mm): 408W x 638H x237D(Excluding connectors and brackets) Protection Degree: IP65
