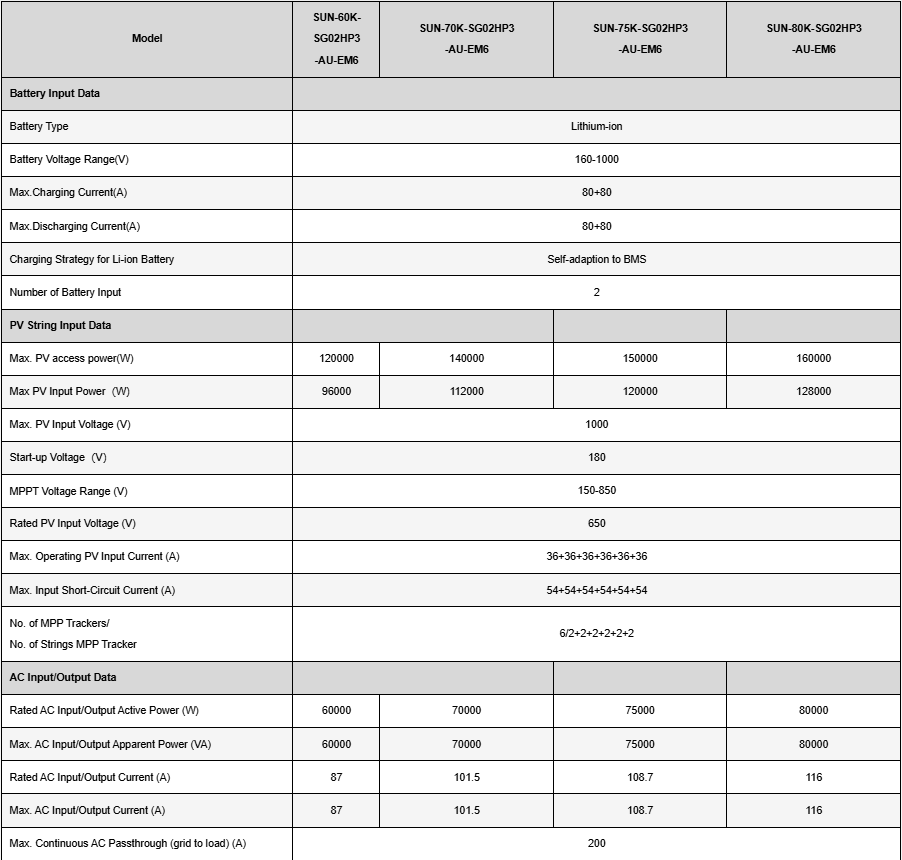

Battery Input Data Battery Type: Lithium-ion Battery Voltage Range (V): 160-1000 Max. Charging Current (A): 160 Max. Discharging Current (A): 160 Charging Strategy for Li-ion Battery: Self-adaption to BMS Number of Battery Input: 2
PV String Input Data Max. PV Access Power (W): 160000 Max. PV Input Power (W): 128000 Max. PV Input Voltage (V): 1000 Start-up Voltage (V): 180 MPPT Voltage Range (V): 150-850 Rated PV Input Voltage (V): 650 Max. Operating PV Input Current (A): 36+36+36+36+36+36 Max. Input Short-Circuit Current (A): 55+55+55+55+55+55 No. of MPP Trackers/No. of Strings MPP Tracker: 6/2+2+2+2+2+2
AC Input/Output Data Rated AC Input/Output Active Power (W): 80000 Max. AC Input/Output Apparent Power (VA): 80000 Rated AC Input/Output Current (A): 116 Max. AC Input/Output Current (A): 116 Max. Continuous AC Passthrough (grid to load) (A): 200 Peak Power (off-grid) (W): 1.5 times of rated power, 10s

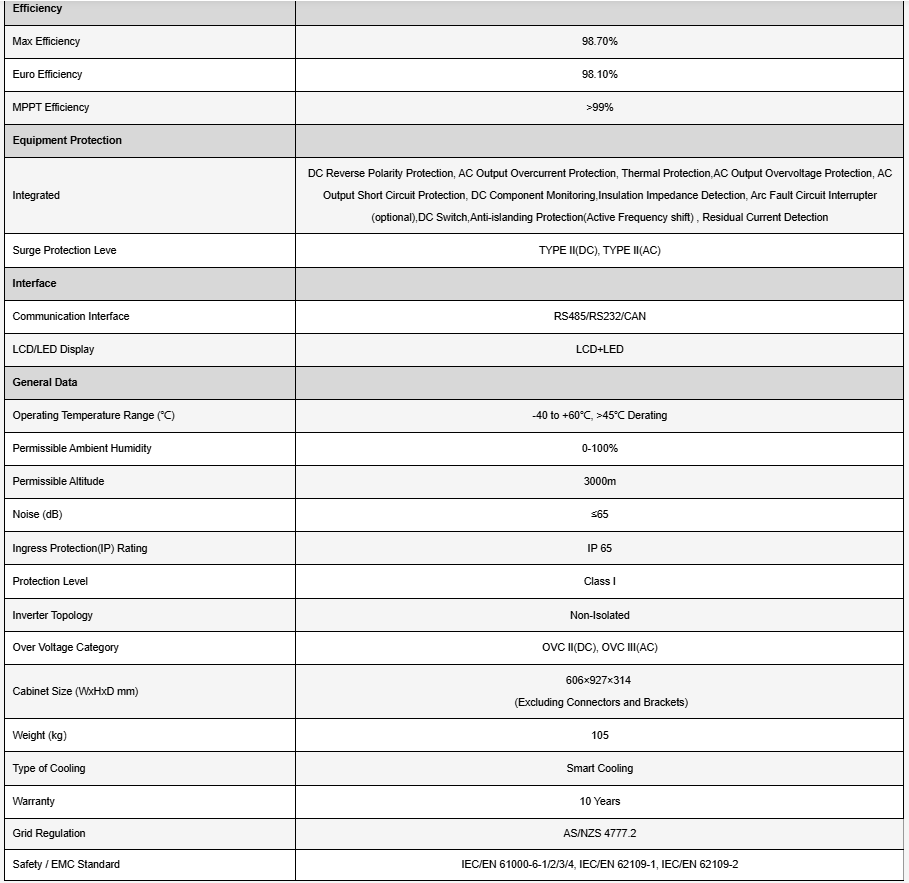

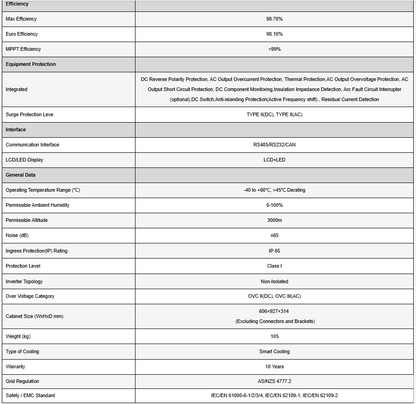

Efficiency Max. Efficiency: 98.70% Euro Efficiency: 98.10% MPPT Efficiency: 99%
General Data Cabinet Size (WxHxD mm): 606×927×314 (Excluding Connectors and Brackets) Weight (kg): 105
