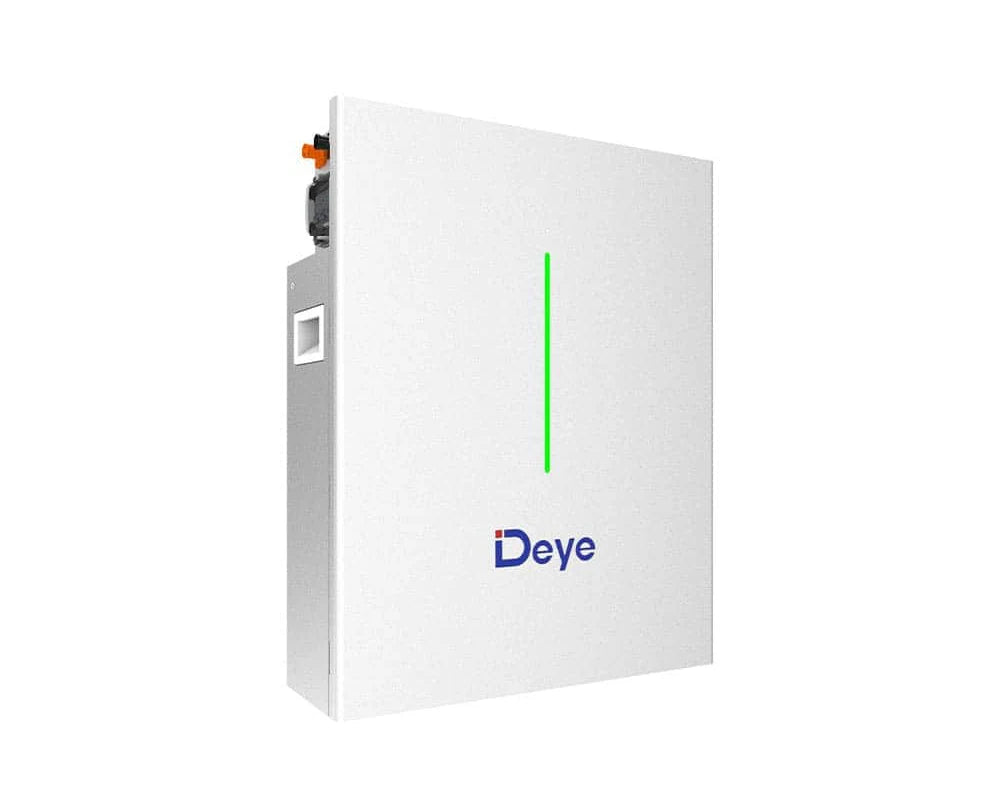

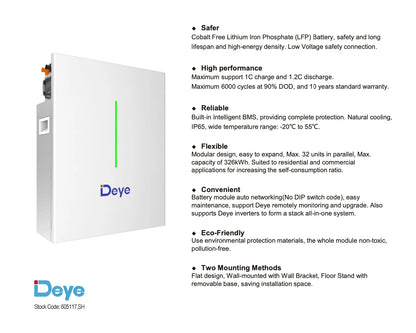

Deye RW-F16 LiFePO4 Battery 51.2V 16kWh High-Performance Energy Storage

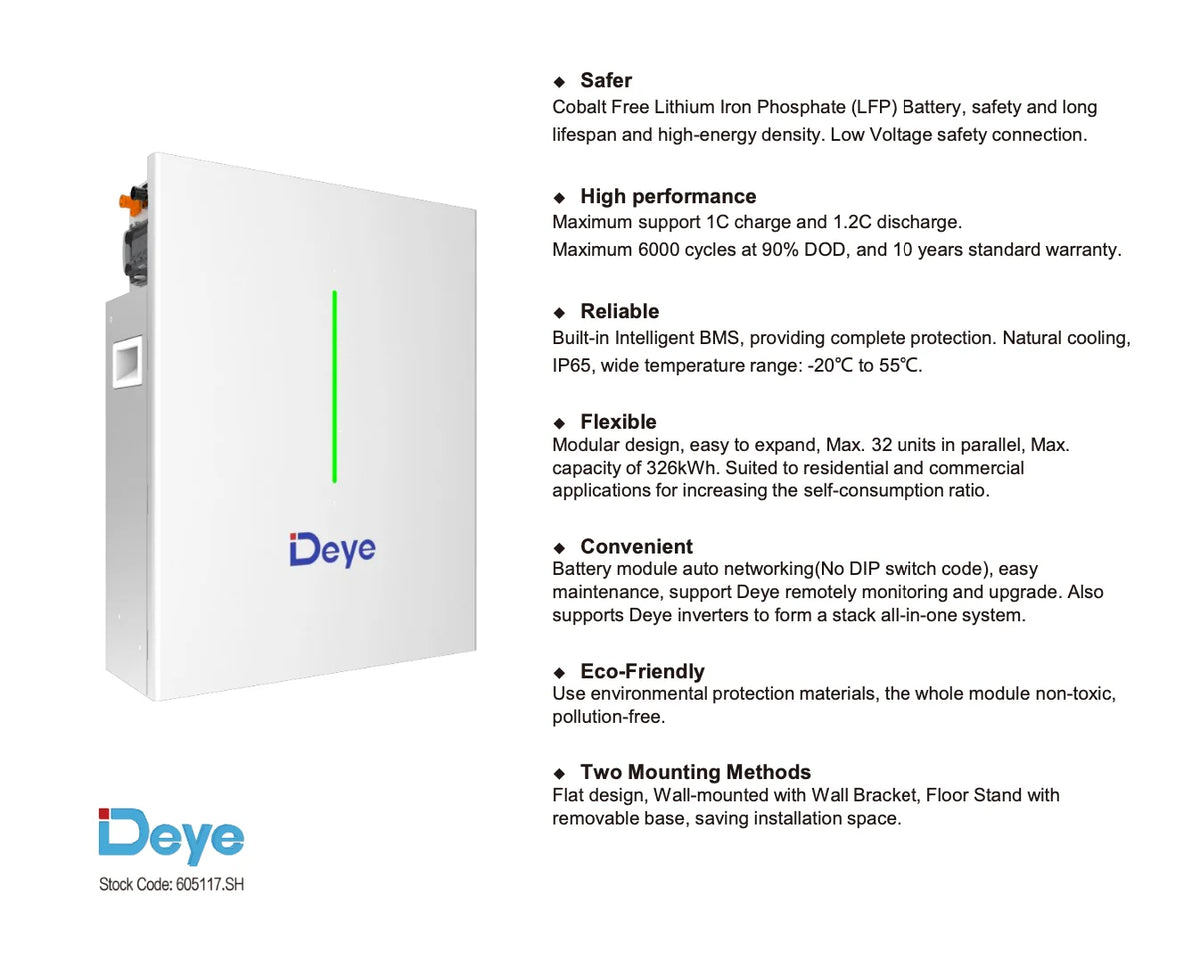

Key Features

High-Capacity LiFePO4 Energy Storage

Deye RW-F16 uses safe Lithium Iron Phosphate (LiFePO4) chemistry with a nominal energy of 16kWh and 14.4kWh usable energy at 90% DOD.

Safe and Reliable Battery Design

Built-in 125A 2P 60Vdc circuit breaker and intelligent battery system design. Low-voltage 51.2V battery platform for residential energy storage applications.

Flexible Expansion

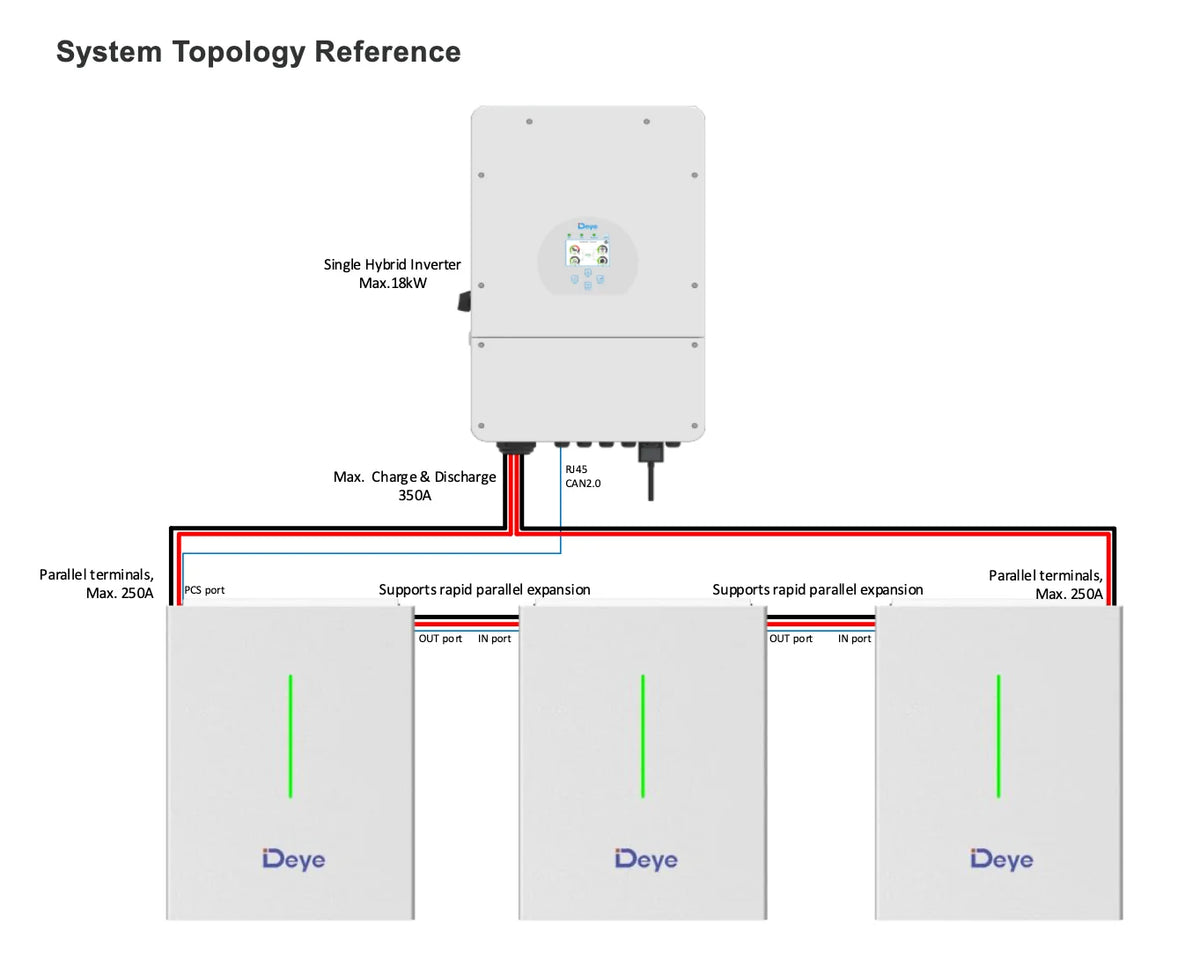

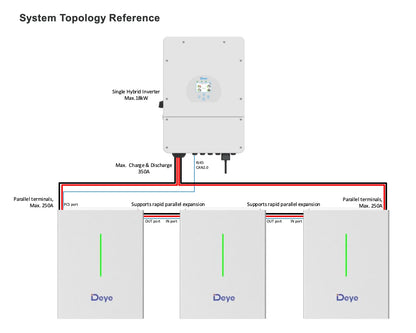

Supports up to 32 battery packs in parallel, providing a maximum system capacity of up to 512kWh.

High Charge and Discharge Performance

Supports 160A continuous charge/discharge current and 300A peak charge/discharge current for 10 seconds.

Easy Installation and Monitoring

Wall-mounted or floor-mounted installation. LED indicator shows SOC and working status. Communication ports include CAN2.0 and RS485 for compatible inverter systems.

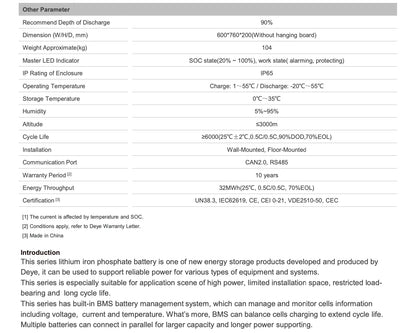

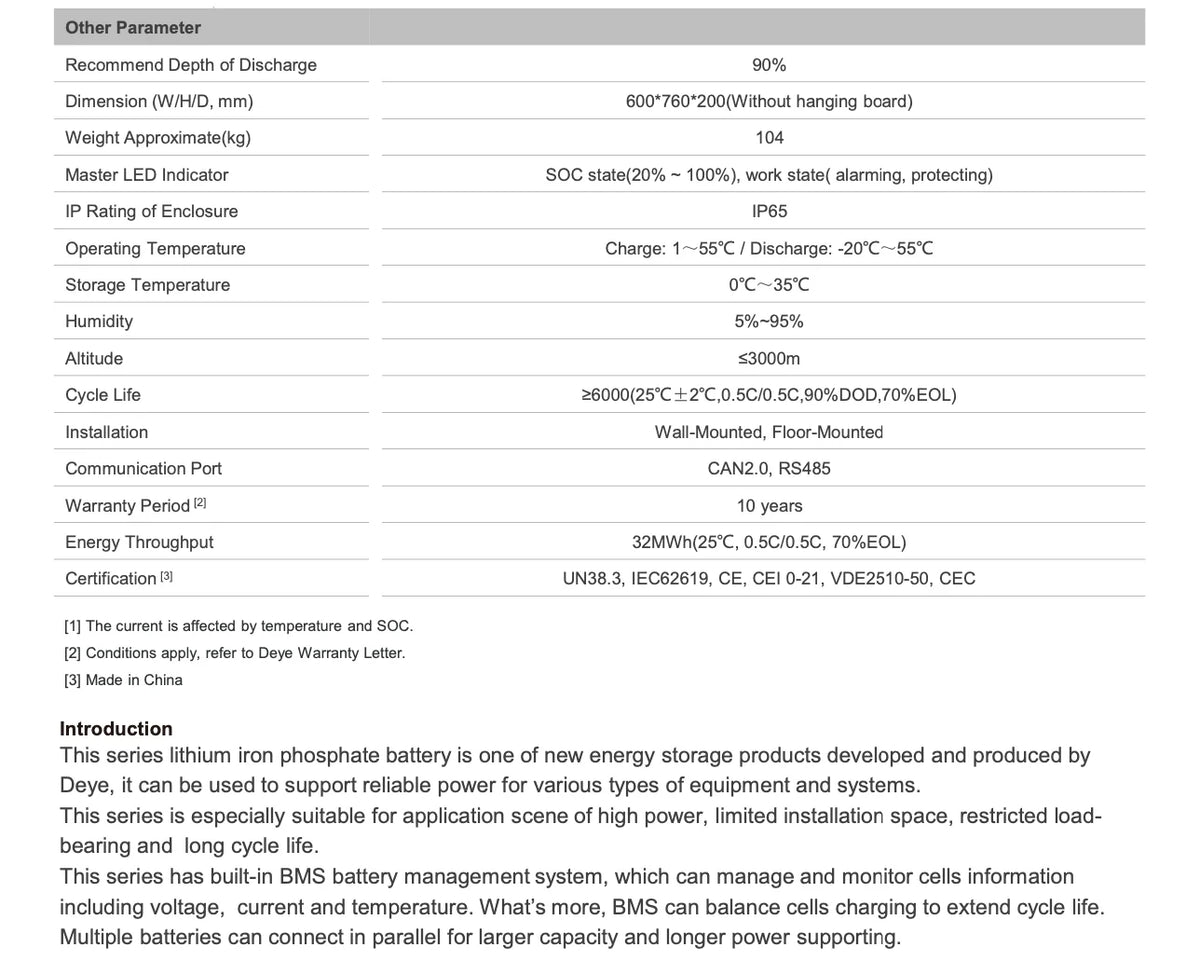

Specifications

• Model: RW-F16
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Operating Voltage: 44.8V ~ 57.6V
• Capacity: 314Ah
• Nominal Energy: 16kWh
• Usable Energy: 14.4kWh @ 90% DOD
• Scalability: Up to 32 packs in parallel, max. 512kWh
• Charge/Discharge Current: 160A continuous; 300A peak for 10 sec
• Recommended Depth of Discharge: 90%
• Dimensions: 480mm (W) x 830mm (H) x 235mm (D), without hanging board and base
• Weight: Approx. 122kg
• IP Rating: IP20
• Operating Temperature: Charge 0°C ~ 55°C; Discharge -20°C ~ 55°C
• Recommended Operating Temperature: 15°C ~ 35°C
• Storage Temperature: 0°C ~ 35°C
• Relative Humidity: 95%
• Altitude: ≤2000m
• Cycle Life: ≥6000 cycles at 25°C±2°C, 0.5C/0.5C, 90% DOD, 70% EOL
• Installation: Wall-mounted or floor-mounted
• Communication Port: CAN2.0, RS485
• Warranty Period: 5 / 10 years
• Energy Throughput: 26.25 / 52.5MWh
• Certification: UN38.3, MSDS
