HTHIUM 4 x Lithium Iron Phosphate Battery (Lifepo4) 3.2v 314ah (4 cells)
HTHIUM 4 x Lithium Iron Phosphate Battery (Lifepo4) 3.2v 314ah (4 cells)
Couldn't load pickup availability

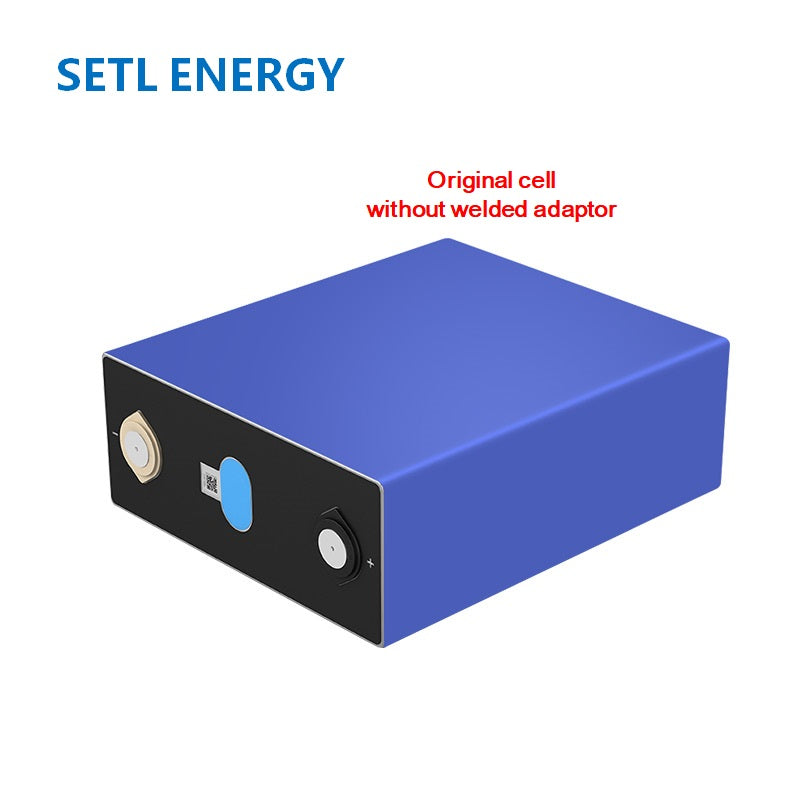

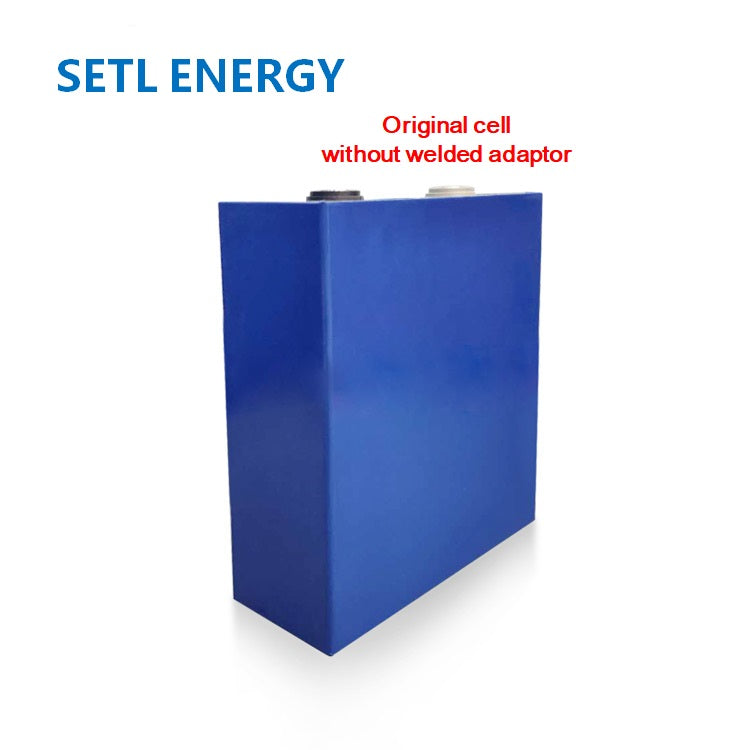

This brand new, Grade A prismatic LiFePO4 cell is perfect for building your own power storage for home solar storage, caravans, RV's, Motorhomes, Boats, Golf Carts, or other Electric Vehicle conversions.
This price is for 4x cells, and each single cell includes: 1 x copper busbar and 2 x screw bolts.
3. Declaration: Unless we otherwise declared specifically, our cells are real grade A cells, series number of each cell is recorded in our database with its original chemical characters, and this is guaranteed.
Note:

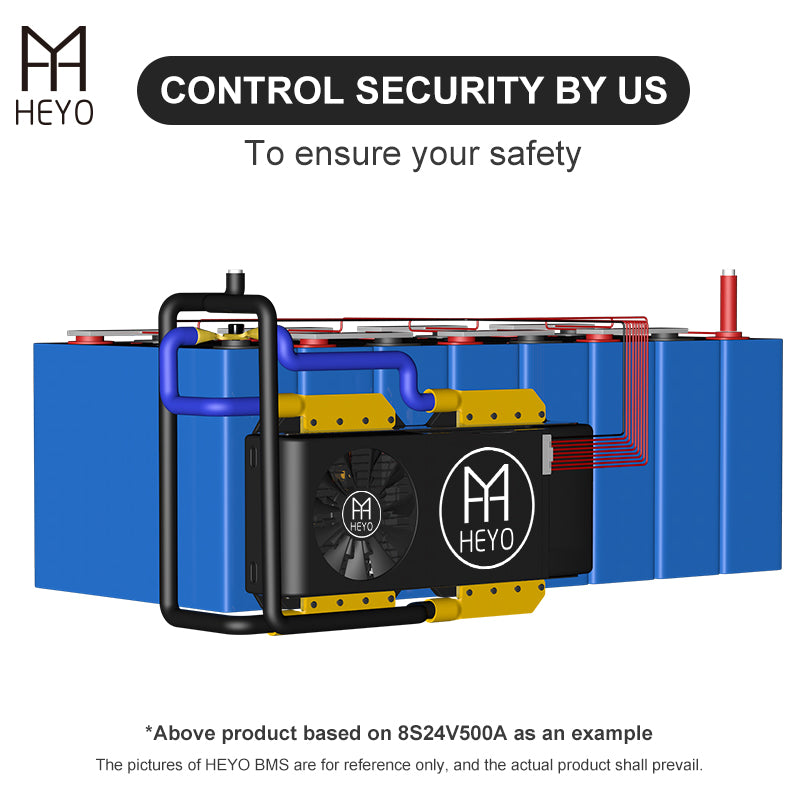

1. Please use a BMS to make a pack for safety and longevity.
2. Please wrap the cells with clamp force on both wide sides, as the cells need to work under clamp force to avoid swollen during using. (This is the right process for packing battery cells)
3. The capacity of A cell will have higher capacity than nominated and IR should between 0.15~0.17mΩ, but based on different batch, capacities are vary from batch to batch. So it is normal like one batch is around 313Ah and another batch is around 320Ah etc. And better not mix cells from different batch to make a pack for balance reason.
| Warranty: | 12 months |
| Applications | BOATS, Electric Folklifts, Electric Power Systems, electric vehicles, Electric Wheelchairs, Golf Carts, Home Appliances, Solar Energy Storage Systems, SUBMARINES, Toys, Uninterruptible Power Supplies, Electric Vehicle Communications Energy storage Intelligent network |
| Brand Name: | HTHIUM |
| Model Number: | 314AH |
| Place of Origin: | China |
| Weight: | 5.5±0.05kg |
| Type: | Lithium Phosphate |
| Certificates | IEC/CE/RoHS/UN38.3/MSDS/UL |
| OEM/ODM: | Support customize |
| Operating Temperature: | Discharge :-20-55 degreeC Charge: 0-55 degreeC |
| Payment Terms: | Bank Transfer, Paypal, POLi payments, Wechat Pay, Alipay |
| Charging Time: | Fast Charge |
| Name: | 3.2V 314AH lifepo4 battery |
| Cycle Life: |
After 10000 full cycles, still have over 70% capacity available. |
| Typical Capacity | 325Ah | |
| Typical Voltage | 3.2V | |
| AC Impedance Resistance | ≤0.25mΩ | |
| Standard charge and discharge Charge/Discharge Current | 0.5C/0.5C | |
| Standard charge and discharge Charge/Discharge Cut-off Voltage | 3.65V/2.5V | |
| Maximum current of charge/discharge |
Constant Charge/Discharge Current | 1C/1C |
| Pulse Charge/Discharge Ccurrent（60s） | 1C/2C | |
| Recommended SOC window | 10%～90% | |
| Charging Working Temperature | 0℃～55℃ | |
| Discharging Working Temperature | -20℃～55℃ | |
Note: Freight to be quoted by couriers and per item (NOT per order as each item (box) weight 24KG.) and pick up for free.
