The LiFePO4 battery is the most popular battery nowadays, with long life, great safety and only about half weight and size of Lead-Acid based batteries.
Parallel: max 4 parallel and 4 serial connections
Super long cycle life: 6000
Nominal Capacity: 100Ah
Nominal Voltage: 12.8V
Bluetooth: Supported
Charge Voltage: 10V-14.6V
Max. Continuous Charge Current(25°C): 50A
Max. Continuous Discharge Current(25°C): 100A
Max. Charge Current: 50A
Max. Discharge Current(=7S): 110A
Internal Impedance: =10mO
Charge Temperature: -0-45°C
Discharge Temperature: -25-65°C
Standard Operation Temperature: -25-65°C
Self-discharge Rate(per month): <2%

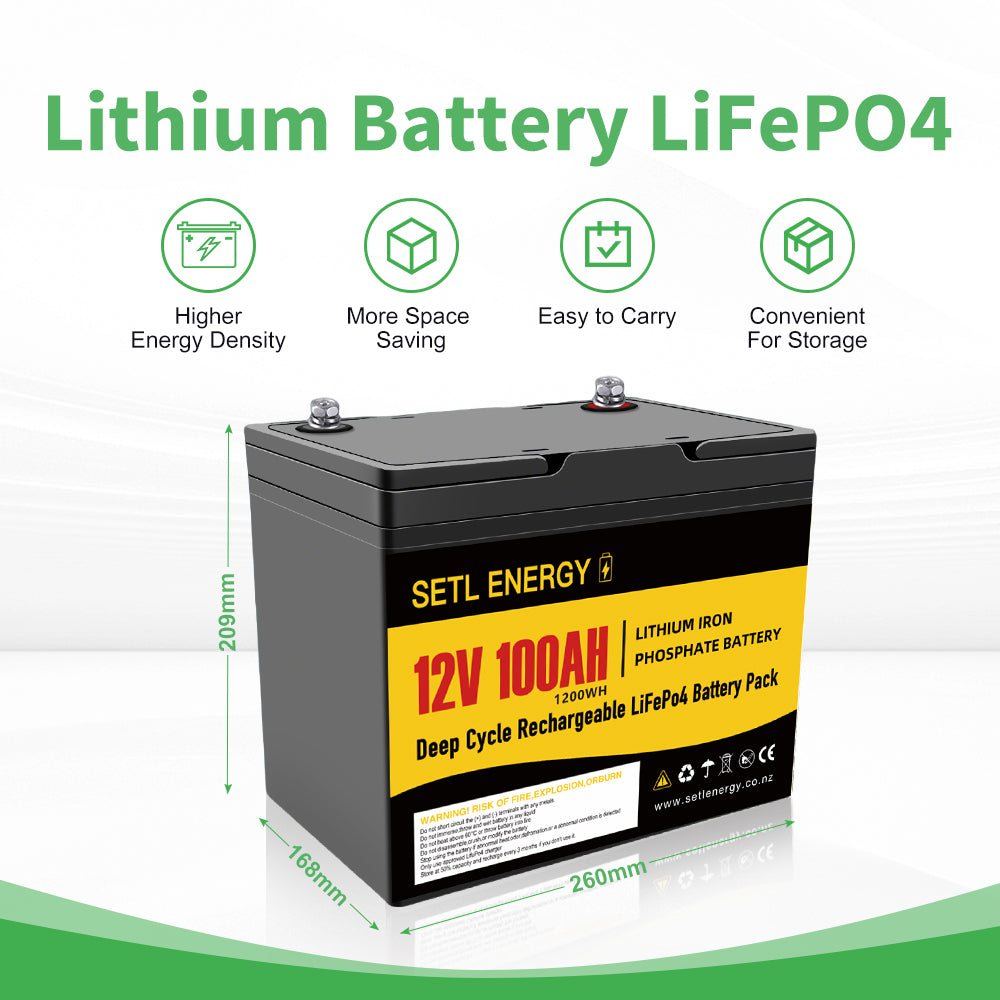

Dimension: 26cm x 21cm x 17cm Gross Weight: 11kg
5 years Warranty
Package: 1 x SETL ENERGY 100Ah Lithium Iron Phosphate Battery Set of Screws & Nuts
| Rated Capacity |
12v 100Ah |
Cell Capacity |
3.2v 106Ah |
| Cell Grade |
Grade A |
Factory Capacity |
12v 106Ah |
| Charge Current |
100A |
Dishcarge Current |
100A |
| Charge Voltage |
14.6V |
Discharge Voltage |
8.9V-12.8V |
| Cycle Life |
6000 times |
Warranty |
5 Years |
| Dimension |
330*172*215mm |
Weight |
11KG |
| Housing |
ABS |
Terminal |

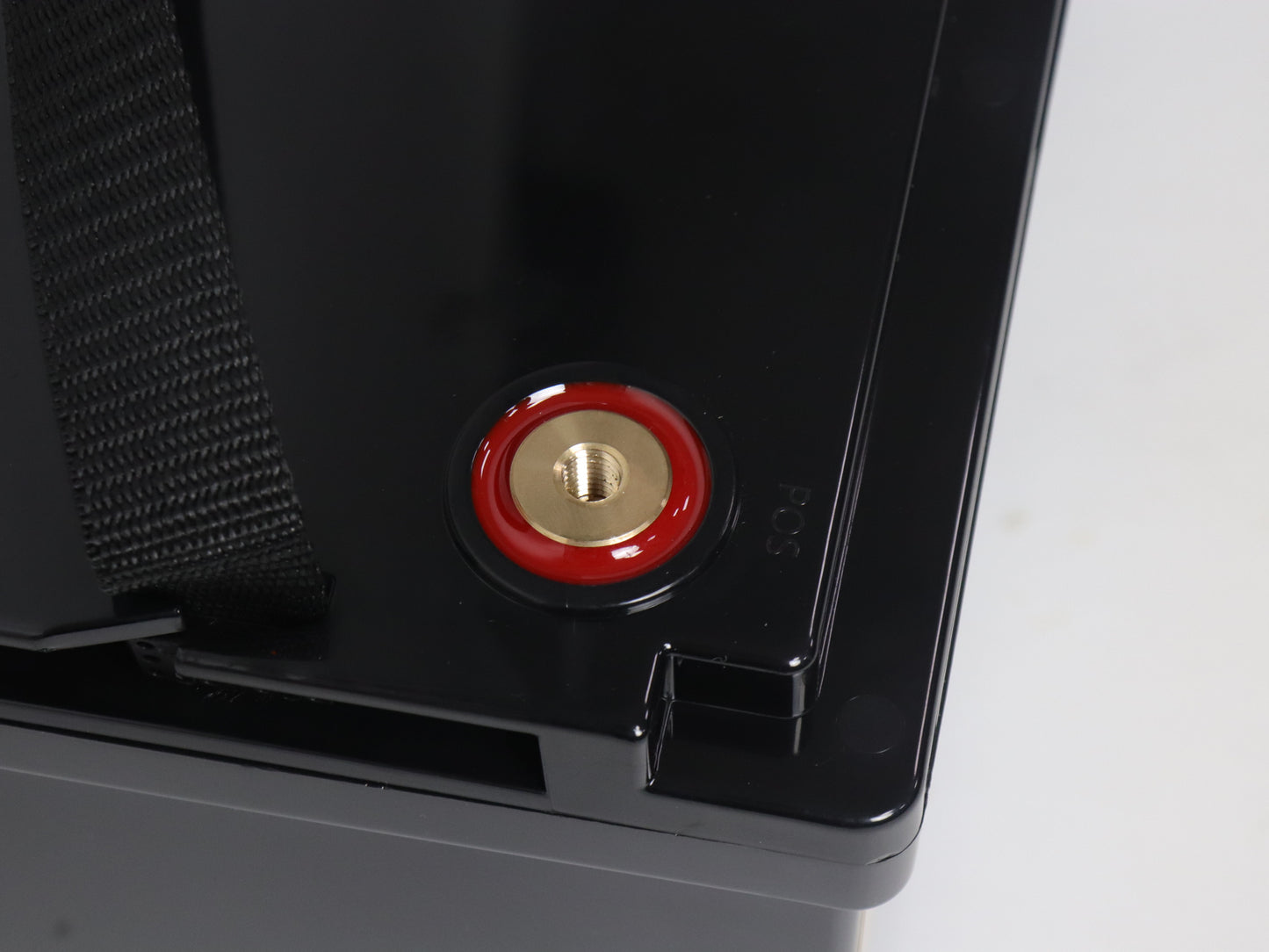

M8 |
| Bluetooth |
Yes |
Connection |
Up to 4 in series or 4 in parallel |
| Certification |
CE |
MSDS |
UN38.3 |
