The 225kWh BESS battery energy storage system is designed for commercial and industrial users requiring higher energy capacity, longer discharge duration, and enhanced peak-shaving performance.
Built on a mature industrial-grade inverter platform and integrated with SETL ENERGY's self-developed high-voltage LiFePO₄ battery system, this all-in-one BESS delivers stable, safe, and scalable energy storage for grid-connected, off-grid, and hybrid energy projects.
This solution is well suited for battery energy storage systems (BESS) deployed in farms, factories, industrials, commercials, and renewable energy projects.

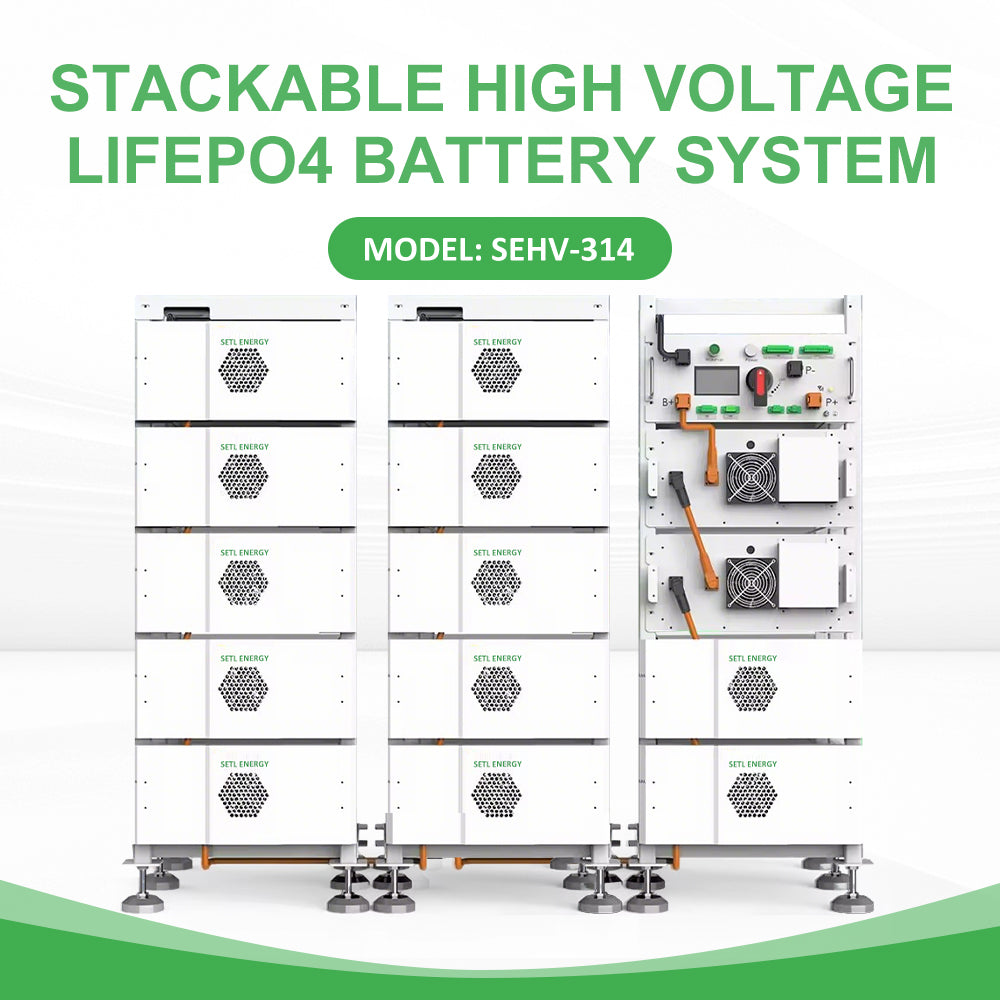

It can use with 3 Phase inverter range from 25kWh to 125kWh. This rack mounted system is flexible to stack 4-14 batteries for the system (capacity range from 64kwh to 225kwh.)
Please contact info@setlenergy.co.nz or call 021-08065551 for detail quotation. Thanks!
| Parameter |
4pcs in Series |
9pcs in Series |
14pcs in Series |
| Rated Capacity |
64kWh |
144kWh |
225kWh |
| Nominal Capacity |
314Ah |
314Ah |
314Ah |
| Nominal Voltage |
204.8V |
460.8V |
716.8V |
| Charge Cut-Off Voltage |
233.6V |
525.6V |
817.6V |
| Discharge Cut-Off Voltage |
185.6V |
417.6V |
649.6V |
| Maximum Continuous Discharge Current |
<=157A |
<=157A |
<=157A |
| Charging Temperature |
0℃~60℃ |
| Discharging Temperature |
-20℃~60℃ |
| Warranty |
10 Years |
| Cycle Times |
>8000 90%DOD 25°C |
| Reference Size |
838*582*1480 (High) |
838*1184*1480 (High) |
838*1786*1480 (High) |
| Reference Weight |
536kg |
1168kg |
1898kg |
| Protection Level |
IP20 |
| Communication Interface |
CAN/RS485 |
| Cooling Method |
Air Cooling |
