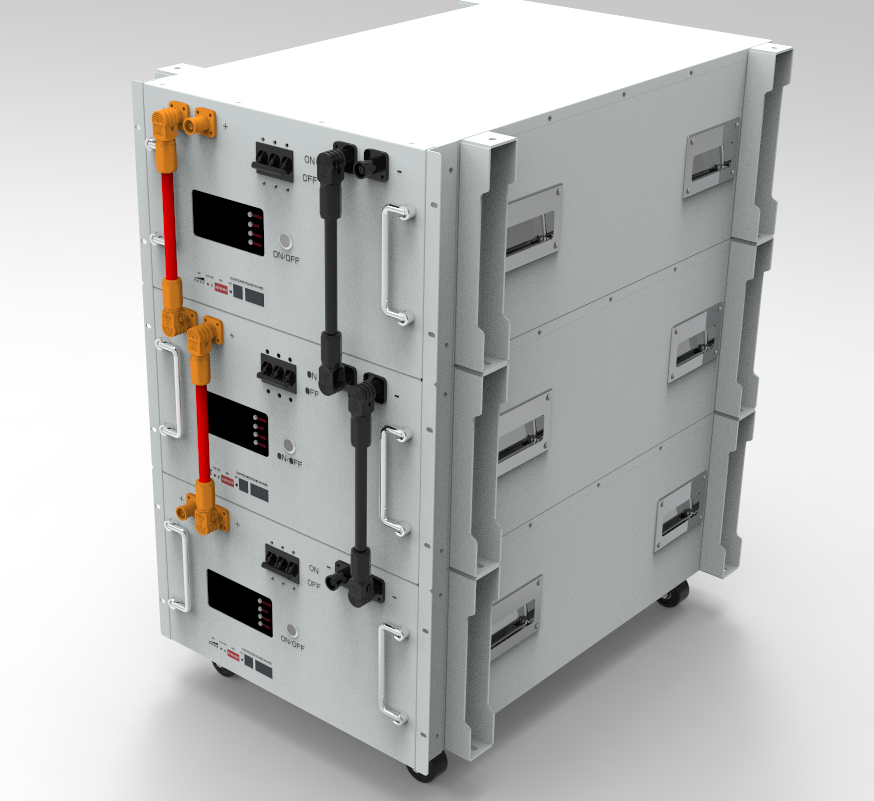

SETL ENERGY 48v Lithium battery (LiFePO4) 51.2v 314ah Solar Storage Energy Storage System 16KW

Brief Introduction:

High lights: 16 kwh home energy storage Lithium Iron Phosphate Battery (LiFePO4) It means you put more than three 5kwh LiFePO4 solar batteries into one without any complex work. space saving, huge power storage, simpler and stabler, easy portable and expandable too. 11000 cycles over 70% capacity retention. Patent Hydaulic DC breaker along with battery switch on/off botton, double protection.

(Compared with 51.2v280Ah battery, the 51.2v314Ah battery are made by 314Ah cells that is the 3-generation battery and the cycle life increased from 6000 before 70% to 11000 before 70%. And with same dimension.)

Compatible with most inverter brands including DEYE, Victron, Goodwe, Growatt, MUST, Sofar etc.

Product Performance:

Capacity: >51.2v 325Ah (guaranteed)

Expandation: Max. 16 batteries in parallel

Compatible with most of the available inverters including Victron, DEYE and Growatt, etc. Potable with Wheels

Stack-able with up to 4 batteries in a stack.

Powerbank/ Powerwall: 2-direction positioning, both horizontal and Vertical position supported, fit with different kinds of garage.

Main Specification:

Brand: SETL ENERGY

Model name: SE-P512314S

Nominal voltage: 51.2v

Power capacity: >16.38kWh

Standard charge current: 157A

Cycle life: 10000 cycles before 70% retention

Maximum continuous discharge current: 210A

Standard discharge current: 157A

Maximum continuous charge current:200A

Cell Internal Resistance: <=0.17mohm

Dimensions (L x W x H): 720 x 442 x 260mm without wheel, 720*442*335mm with wheel Weight: 125KG±0.5KG

Communication Interface: CAN/RS485

Discharge Temperature: -20 to 65ºC

Charge Temperature: 0 to 55ºC

Wheel detachable.

Standard Meet: IEC, CE, MSDS, UN38.3

20 YEARS DESIGNED LIFE. 10 YEARS WARRANTY

New Zealand local solar energy storage wholesaler, real affordable solar power.

Downloads BMS-Monitor, Bluetooth
